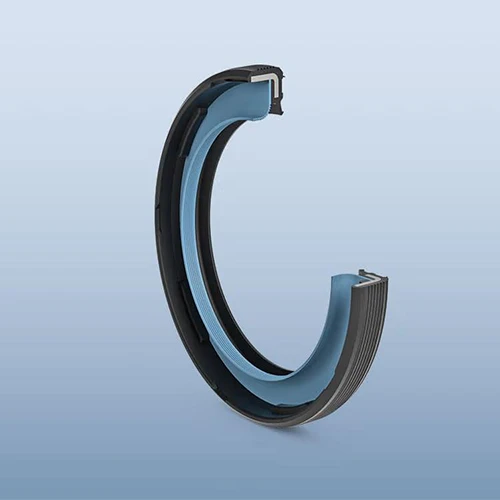

Screw Compressors Air End Shaft Seal-Mechanical Sealing Solutions
- Prevents contamination intrusion: In a normally operating oil-injected screw compressor, the shaft seal prevents the intrusion of contaminants and keeps the compressed air and oil where they should be when shut down.
- Suitable for high speed and high temperature: Some screw compressors air end shaft seal designs can withstand speeds up to 4,000 to 14,000 RPM and temperatures up to 350 degree F (177 degree ), while also handling vacuum pressures up to 25 PSI (1.7 BAR).
👉The material is mainly PTFE, which has excellent chemical resistance and high-temperature resistance, and is suitable for various industrial application machinery, including but not limited to compressors.
| ASTM D2240 | (Shore D - 15 sec) | 60 | ||
| ASTM D792 | 2.15 | |||
| ASTM D638 | Microtensile specimen of ASTM D1708, speed of testing 0.8mm/s | 28 | ||
| % | ASTM D638 | Microtensile specimen of ASTMD1708,speed of testing 0.8mm/s | 300 | |
| Compressive strength 1% | ASTM D695 | 4.6 | ||
| Friction coefficient - dynamic | ASTM D 3028(1) | speed {{0}}.08m/s load 0.1 N/mm² sliding surface steel roughness Ra=0.5 micron | 0.07 | |
| Friction coefficient - static | ASTM D 3028 (2) | 0.09 | ||
| ASTM D638 | 280 | |||
| Coefficient of thermal expansion from 25 to 100 degree | -1 | ASTM E 831 | 16x10-5 | |
| ASTM D149 | 36 | |||
Linde Polymer Technology Co., Ltd. mainly produces various rubber compounds and rubber seals and currently has more than 3,000 material formulas and more than 2,000 specifications of products. The products suit automobiles, aviation, machinery, petrochemicals, sanitary ware, medical, food, electronics, defense, military, industry and other fields. Since the establishment of the factory, the company has completed process consistency operations and the product yield rate has reached 97.1%.
48,000㎡
2,004
300
12
